UNIQUE COMBUSTION

The GranView incorporates a unique combustion air supply system that directs outside air to every supply port inside the fire chamber. By directly connecting the combustion air from outside the home to the unit, heated room air is not lost up the chimney when you are burning a fire. “Fireplace odor” or cold drafts will never invade your home when the fireplace is not in use.  A specially designed air wash provides ample flow of incoming air to continually sweep the glass clean and create a dramatic flame pattern.

ZERO CLEARANCE INSTALLATION

The zero clearance surround provides easy, cost effective installation. A special foundation or support is not required to install the fireplace. 95.4% Combustion Efficient Design While you’re relaxing in the warmth of the fire, the GranView is hard at work burning the smoke that is wasted by normal fireplace designs. This clean burning fireplace limits hydrocarbon emissions, reducing creosote accumulation in the chimney.

FLEXIBLE DESIGN OPTIONS

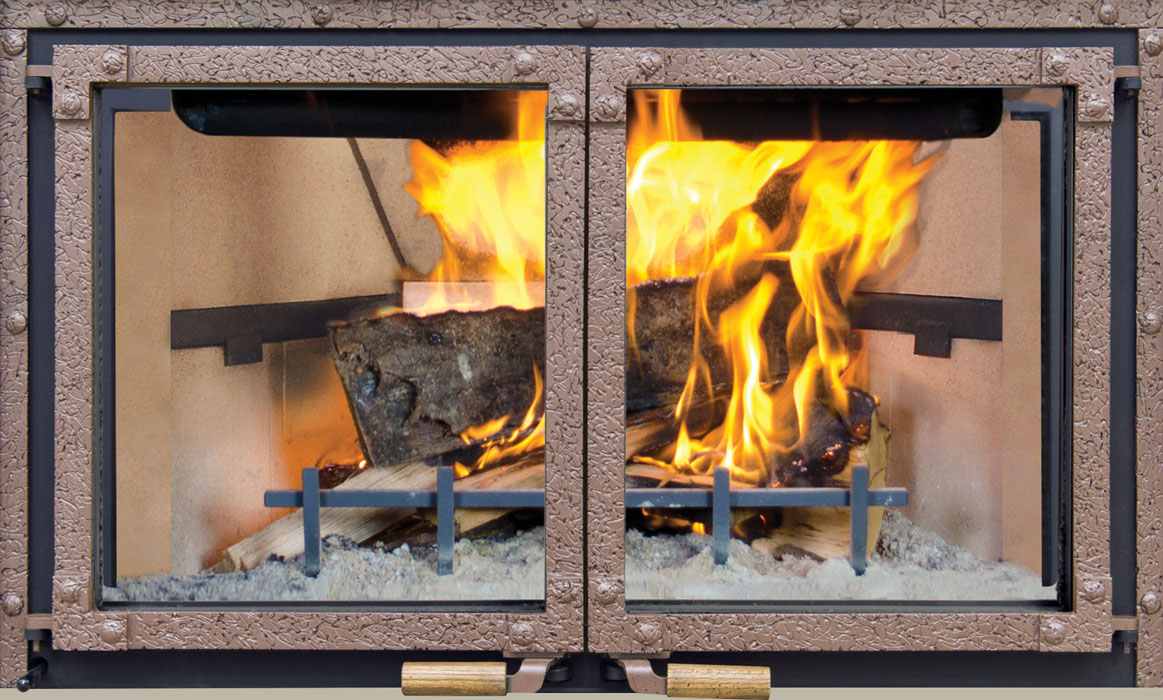

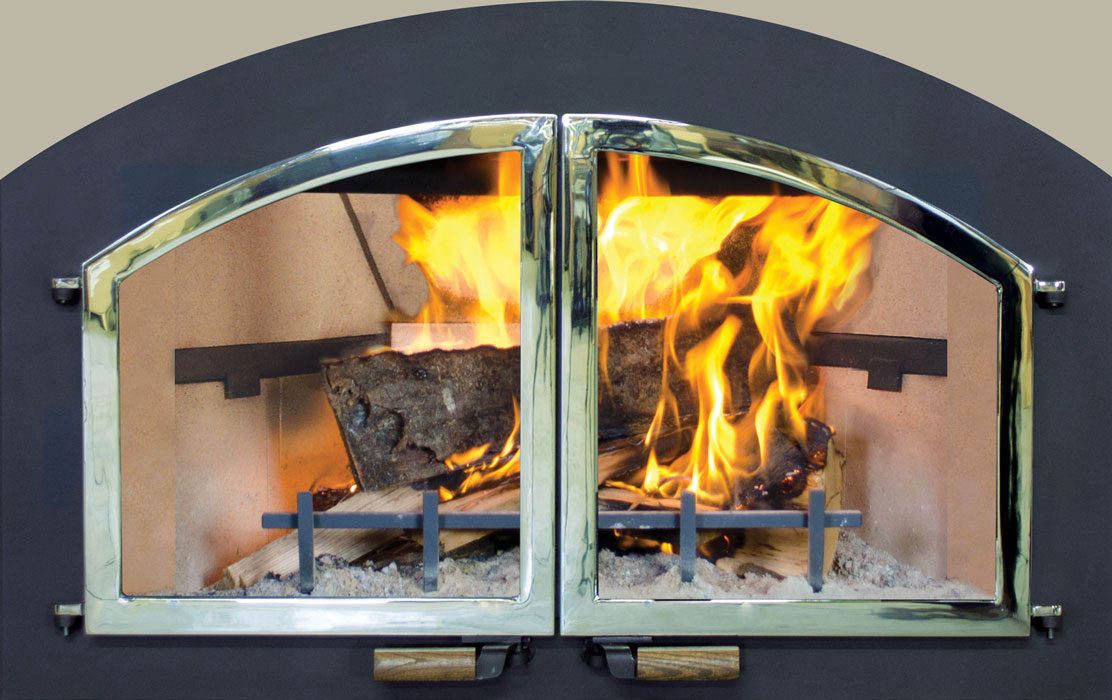

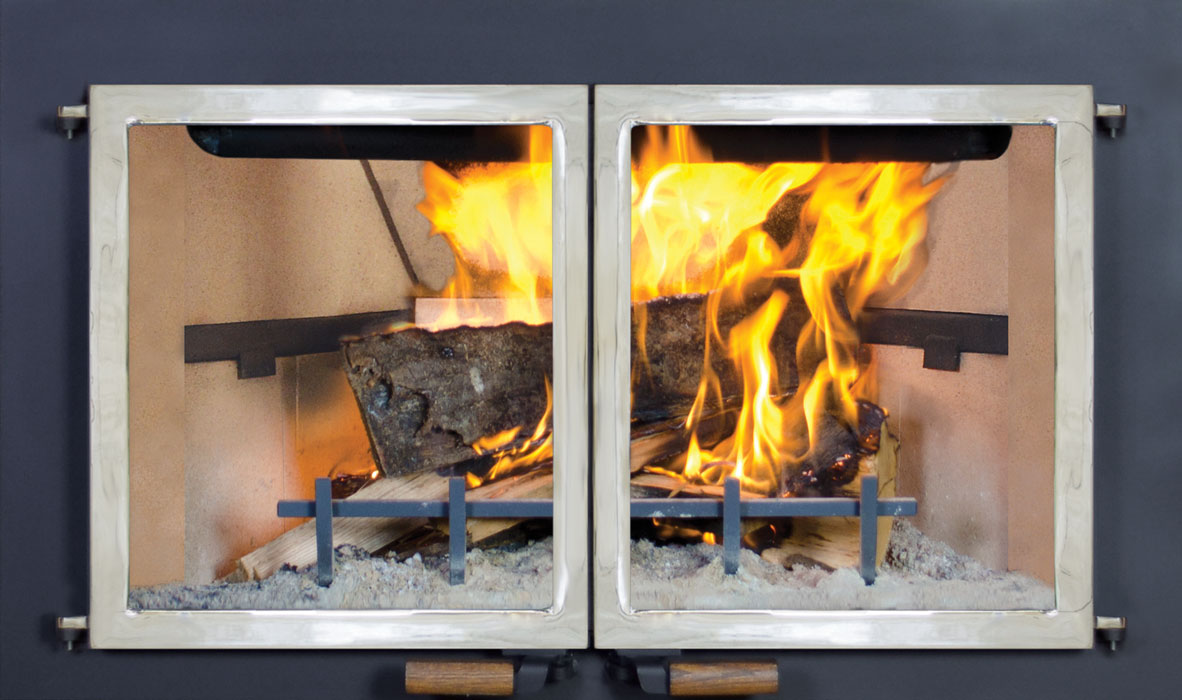

The elegant style of our arched or rectangular doors can be enhanced with optional nickel plating or an ancient iron distressed steel look to create a fireplace design with unlimited decorating options. Choose the look you desire by finishing your installation with stone, tile, stucco or any manufactured facing material to create the fireplace of your dreams.

Fixed Panel Screen

Screen Doors



SPECIFICATIONS

  • Framing Dimensions:45-1/2” wide x 51” high x 24” deep
  • Chimney Size:8” Diameter
  • Weight:685 lbs.
  • Firewood Length:24” average
  • Firebox Size:4.2 cubic ft.
  • Convection Air Circulation of 200 CU. FT./ Minute, Bowers optional
  • Optional Heat Ducting Methods
  • Overall efficiency:72%
  • Emissions:2.72g/kg
  • Complies with EPA requirements as a fireplace

GO TO "DOWNLOADS" ABOVE FOR MANUALS AND OPERATING INSTRUCTIONS

You can complete the look of the fireplace with a clean face option with a standard grill or designer grill, standard louvers, designer louvers or ancient iron louvers.
