Supreme

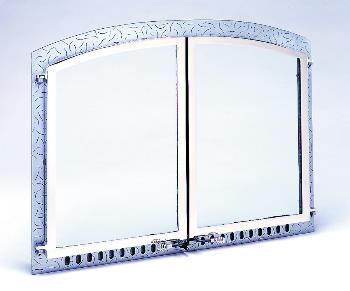

The Supreme™ door is designed to eliminate cold drafts and allows you to gain control of your fireplace. Our design utilizes a dual gasket system that totally seals the glass swinging sections to the outer frame. The door is constructed of 1/4" steel and is exquisitely finished to afford you years of trouble free use. Cam activated latches assure a locked fit. To minimize smoke accumulation on the glass a unique room air inlet is utilized to create an air wash over the glass panels reducing the smoke's contact with the doors.

The Supreme™ also offers optional handles, glass, screen features and finishes. To view these options, please download our full-color brochure which can be found on our Manual Download Page.

THE SUPREME DOOR IS ALSO AVAILABLE IN STOCK SIZES WHICH ARE LISTED IN THE CHART BELOW.

Stock Size doors come standard with black finish, a sliding screen, room air inlet and your choice of spring or wood handles on the bottom of the door.

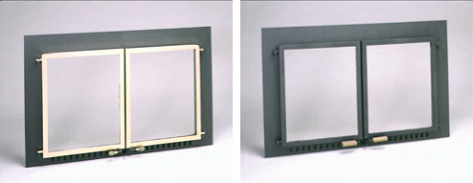

STOCK SIZE SUPREME™ DOOR

Each stock size SUPREME door features a rectangular flush mount frame, combustion room air inlet, sliding fire screen, bottom mounted handles, black finish and your choice of tempered or ceramic glass. The screen may be upgraded to a swing style screen.

To view a PDF of these doors, please download our full-color brochure which can be found on our Manual Download Page.

MODEL	O.D. FRAME	FLANGE O.D.	GLASS SIZE	FITS OPENING WIDTHS OF	FITS OPENING HEIGHTS OF
37260	37" w x 26" h	30 ½" w x 22-3/4" h	14" x 19 ½”	30 ½" - 35"	23" - 25 ½"
37285	37" w x 28 ½” h	30 ½" w x 25-1/4" h	14" x 22”	30 ½" - 35"	25 ½" - 28"
41260	41" w x 26" h	34 ½" w x 22-3/4" h	16" x 19 ½"	35" - 39"	23" - 25 ½"
41285	41" w x 28 ½" h	34 ½" w x 25-1/4" h	16" x 22"	35" - 39"	25 ½" - 28"
41310	41" w x 31" h	34 ½" w x 27-3/4" h	16" x 24 ½”	35" - 39"	28" - 30 ½"
45285	45" w x 28 ½" h	38 ½" w x 25-1/4" h	18" x 22"	39" - 43"	25 ½" - 28"
45310	45" w x 31" h	38 ½" w x 27-3/4" h	18" x 24 ½"	39" - 43"	28" - 30 ½"

MEASUREMENT SHEET FOR CUSTOM WILKENING DOORS

Door can only be used with a masonry fireplace. Fractions or decimals may be used in form but do not enter the inches " icon as you will receive an error.

Door Type *

A in inches (top width) *

B in inches (bottom width) *

C in inches (left side height) *

D in inches (right side height) *

E in inches (lintel height) *

(to base of lintel iron)

Center Height of Arch

FOR ARCH DOORS A TEMPLATE OF THE OPENING IS REQUIRED

Outside Air Source?

IS YOUR FIREPLACE EQUIPPED WITH AN OUTSIDE AIR SOURCE FOR COMBUSTION?

If answered YES - How large of a duct was used?

FRAME OPTIONS

Frame Type *

How many inches?

(1" is standard) FOR ALL INSIDE FIT OR ARCHED DOORS A TEMPLATE OF THE OPENING IS REQUIRED

Flange Depth

Builder Flange 2" Deep is Standard

Door Style

Frame Scribed to Template

(Scroll Cut - template required)

SCREEN OPTIONS

Screen

GLASS OPTIONS

The Grand Seal comes standard with ceramic glass.

Glass Options

HANDLE OPTIONS

The Grand Seal handles are always on the bottom and always wood.

Handle Position

Handle Type

FINISH OPTIONS FOR DOORS

(Swing Sections)

Finish Option for Door

Other Door Color

FINISH OPTIONS FOR FRAME

Finish Option for Frame

Other Frame Color

Is the Firebox Raised or Dropped?

Raised?

If Raised, how many inches?

Dropped?

If Dropped, how many inches?

SHIPPING INFORMATION

Shipped To *

Name *

First

Last

Address *

Address Line 1

City

State

Zip Code

Phone *

Email *

Your phone number is required for the carrier, and if we have questions. Your email address and phone number will never be shared with any 3rd parties.

THIS FORM WILL NOT PLACE AN ORDER IT IS TO VERIFY MEASUREMENTS/COLOR CHOICE AND HAS TO BE FILLED OUT PRIOR TO PURCHASE. FORM IS USED TO PROVIDE YOU AN ACCURATE QUOTE FOR YOUR NEW DOOR

If you have any other information you'd like to share with us, you may type it into this space:

Paragraph Text

Name

NOTICE! Your custom built fireplace door will be as accurate as the measurements provided on this sheet. Use a rigid tape or metal ruler for exact measurements. A mounting flange will protrude into your fireplace opening 2 to 3 inches and be sized to allow 1/4" space between it and your opening. Holes will be drilled though this flange into masonry for attachment. A high temperature silicon or refractory caulking can be used to fill any voids between the door frame and your fireplace.
